Please select the year of your Lincoln before adding to cart.
In stock

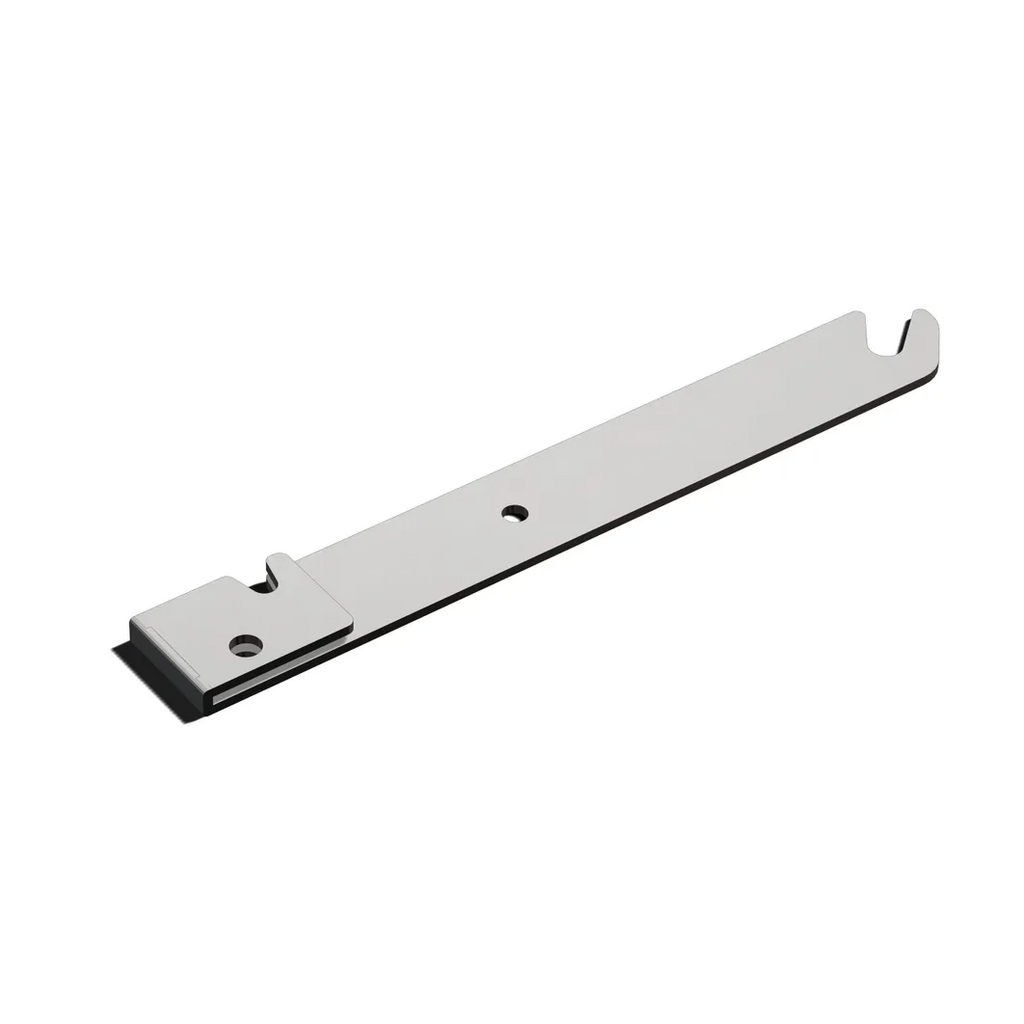

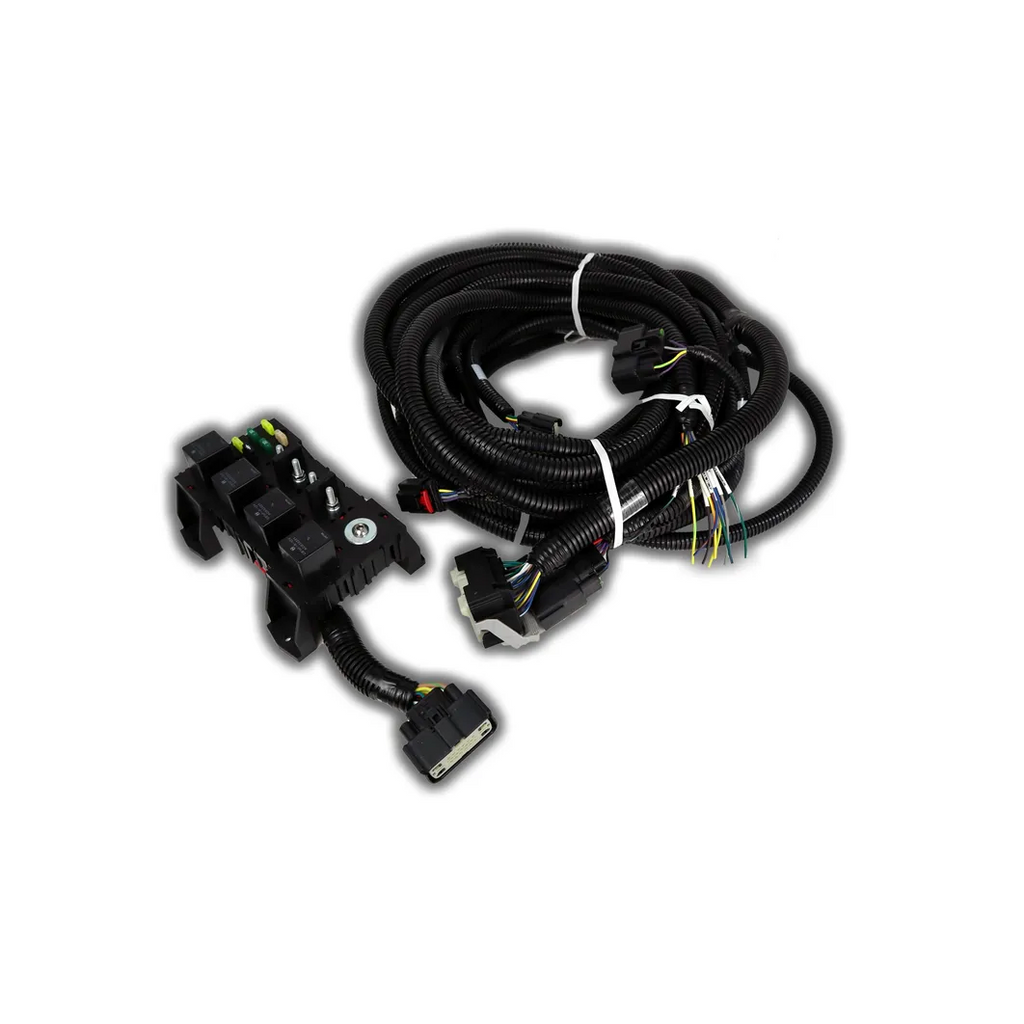

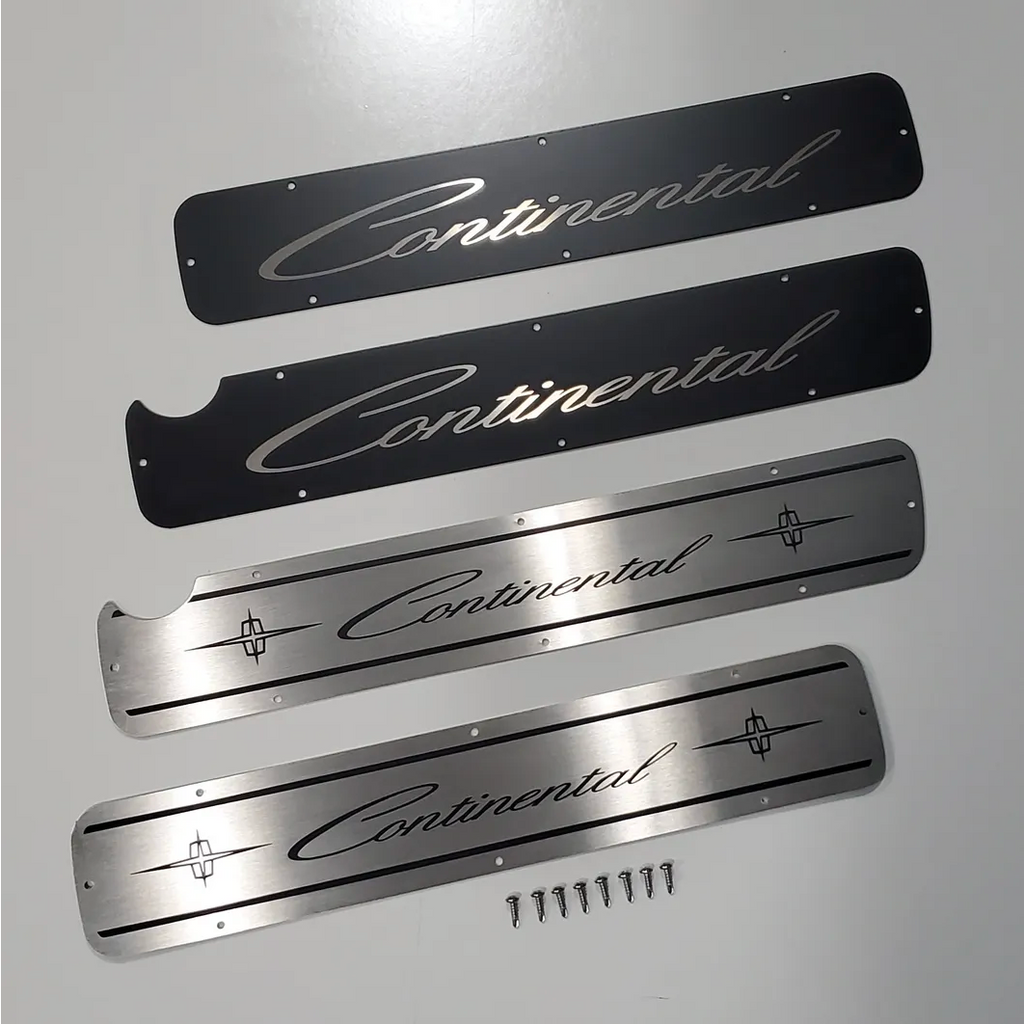

The ultimate all-in-one Coyote 5.0 swap package for the 1961–1969 Lincoln Continental. The ECHELON Kit includes everything from Detroit Deviant's Premium Kit — engine/trans mounts, oil pan with dipstick, and headers — plus a Gen 1 body harness (no CPU), Detroit Deviant valve cover badges, shifter linkage adapter, carrier bearing bracket, gas pedal linkage cover, and E-brake lever. One package, one lead time, one less headache. Designed for 4r70w, 6r80, and 10r80 transmissions.

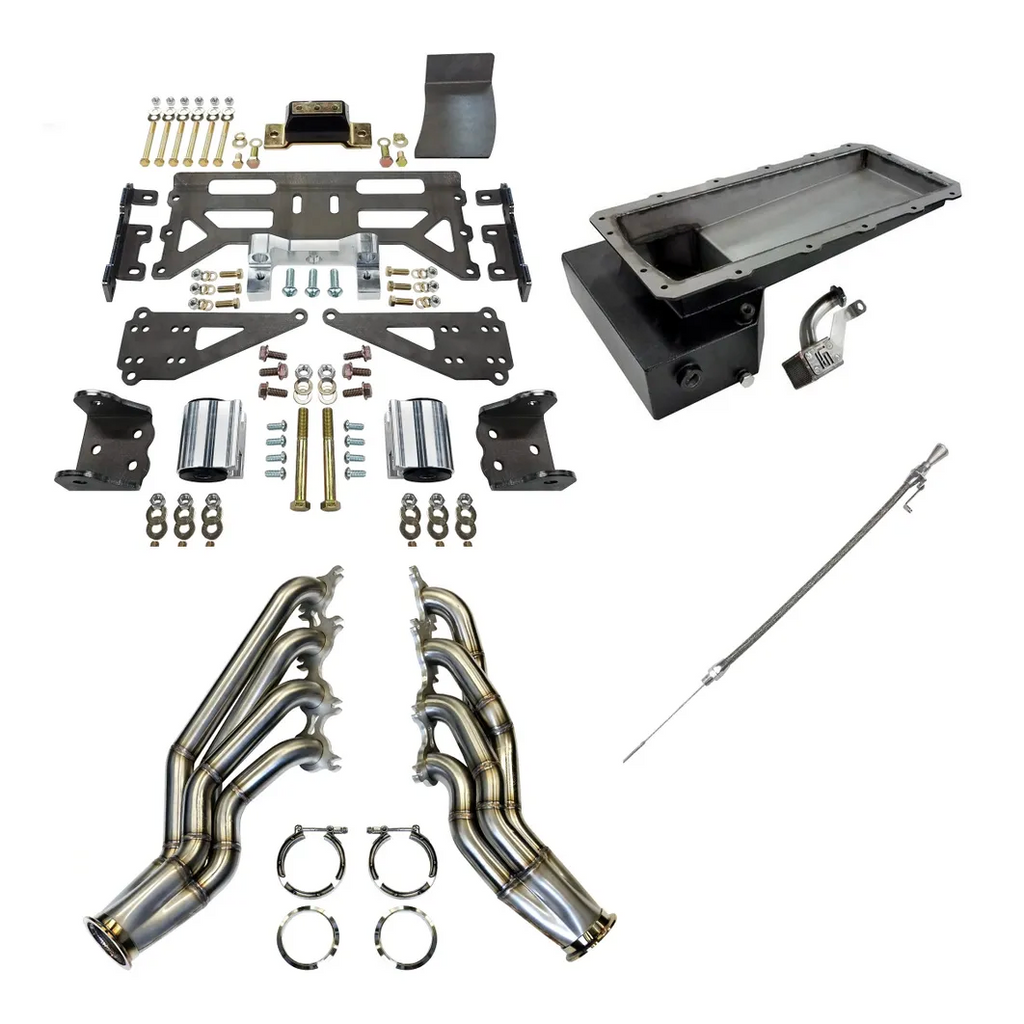

MOUNT KIT Benefits: - Laser cut, TIG welded, and machined components utilizing polyurethane bushings and Grade 8 Hardware - Centers the engine right to left, and positions it mid-way front-to-rear in the engine bay - Positioned to allow clearance of driver's side cylinder head to the steering box, oil pan to crossmember, and bellhousing to the steering centerlink during full lock steering For 2011-17 Coyote engines in 61-69 Lincoln Continentals. OIL PAN Benefits: - Specifically built for installing Coyote engines in 61-69 Continentals with respect to sump, dipstick, and drain locations - Installs without cutting the factory crossmember, unlike the oil pans such as Canton 15-738 which require a large portion of the crossmember to be removed - Works with power steering and AC kits such as the Vintage Air Frontrunner or Sean Hyland Motorsport kits - TIG welded construction and zinc plating inside and out - Includes dipstick NOTE: Oil pan fits 2011+ but the included pickup is for 2011-17 only. The customer is responsible for their own pickup provision on an 18+ engine. HEADER Features: - Allows for Coyote engine placement in 61-69 Continentals which have serious limitations for space, including frame and crossmember clearance as well as steering box clearance issues. - TIG welded 304 Stainless Construction - CNC machined .375 Stainless Flanges - Machined Stainless V-band Clamps for 3.0” and Smaller Exhaust Tubing - Includes Stainless 02 bungs and a Laser Cut Patch Plate NOTE: 61-64 cars will need their steering box changed to 65-69 to provide clearance for Coyote engine and exhaust. Drilling and tapping the head is required for 2024+ models on the driver side. Ford did not drill/tap the same header flange locations as prior years.
Allow 3–4 weeks.
Includes: Engine/trans mount kit, oil pan with dipstick, custom headers, Gen 1 body harness (no CPU), Detroit Deviant valve cover badges, shifter linkage adapter, carrier bearing bracket, gas pedal linkage cover, E-brake lever; Compatible transmissions: 4r70w, 6r80, 10r80; Engine compatibility: 2011+ Coyote 5.0 (oil pickup for 2011–17 Gen 1/2 only)
NOTE: 61-64 cars will need their steering box changed to 65-69 to provide clearance for Coyote engine and exhaust. Drilling and tapping the head is required for 2024+ models on the driver side. Ford did not drill/tap the same header flange locations as prior years. NOTE: Oil pan fits 2011+ but the included pickup is for 2011-17 only. The customer is responsible for their own pickup provision on an 18+ engine.
Install guide coming soon!
Please allow 4–6 weeks for this kit — headers are subject to lead time changes.
