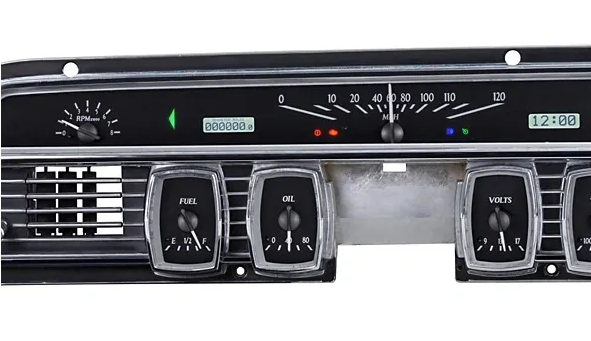

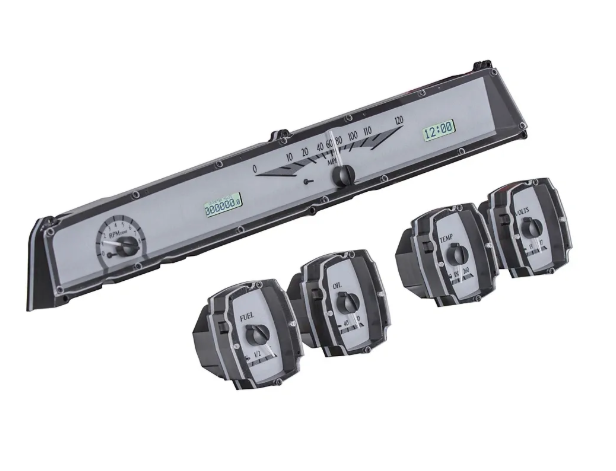

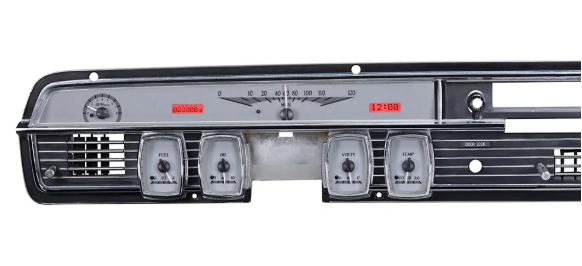

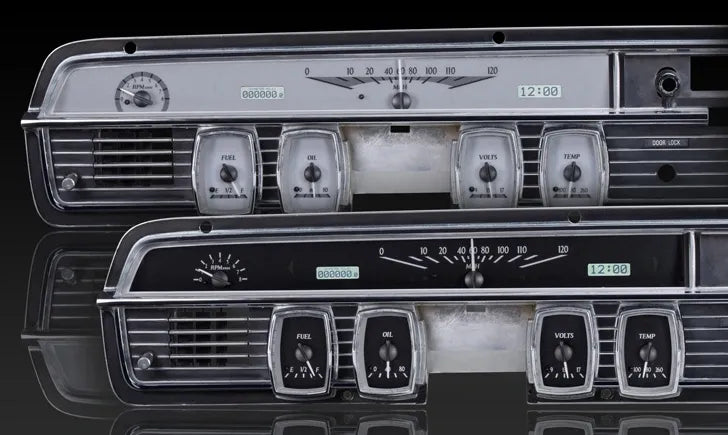

1964- 65 Lincoln Continental From Dakota Digital VHX
$995.00
In stock
High class and tough at the same time — that's the 1964-65 Lincoln Continental, and the Dakota Digital VHX system is built to match it. Designed specifically for this application, it works with your OEM or reproduction dash bezels and trim, keeping the factory look intact while putting modern precision behind the faces.
Choose from Black or Silver Alloy faces with red, blue, or white LED backlighting. Whatever's under the hood — stock 430, an LS3, or anything in between — this system connects to it. Fully lit needles, backlit faces, and dual LCD message centers are what you'll see. Behind them: micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback that leaves the original gauges in the dust.
Completely engineered and manufactured in Sioux Falls, South Dakota, and backed by Dakota Digital's unrivaled limited lifetime warranty.
Note: This system requires permanent modification to the interior of the stock instrument cluster. Bezel not included — system uses OEM or reproduction style bezel.
Water Temperature: 100–260°F (optional metric: 40–120°C)
Fuel Level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9–17 VDC
Lighting: Every number, tick mark, needle, annunciator, indicator, and message center is illuminated by LEDs behind the gauge face for a clean, precise look at any light level.
Digital Message Centers
Standard Displays:
Odometer (one-time user-settable, million mile)
Dual (A/B) Trip Meter (0–9,999.9)
Clock (12 hour)
Performance Meters:
0–60 MPH Timer (0–100 km/h)
1/4 Mile Time
1/4 Mile End Speed (trap speed)
High Speed Recall
High RPM Recall
Digital Gauge Displays:
Speedometer (0–255 MPH/km/h)
Tachometer (0–9,900 RPM)
Oil Pressure (0–100 psi in 1 psi increments)
Water Temperature (100–300°F / 40–150°C in 1° increments)
Voltmeter (9–17 VDC)
Fuel Level (0–99% full)
Display Lighting: Auto-contrasting LCD for visibility in direct sunlight; LED backlit at night.
Built-in Indicators
Turn Signals (Left/Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On / Engaged — when equipped)
Gear Position (requires optional GSS-3000 sensor)
4x4 (when equipped)
Wait to Start (when equipped)
Note: Not all OEM indicator lamp functions will be replaced. Unused indicator positions can be repurposed to suit your application.
Included Sensors
Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
Speed Sender: Cable-driven sender replaces Ford/GM speedometer cables with 10 ft harness. Requires ~5" clearance from cable drive output. (Part #130011 sold separately for relocation when clearance is limited)
Bushings: 1/8"–1/4", 3/8", and 1/2" NPT bushings included, plus 12mm and 16mm x 1.5 thread bushings
Control Box: 5.5" x 3.5" x 1"
Calibration
Pushbutton-operated — mount the included pushbuttons in an accessible location to calibrate the speedometer, set cylinder count, and configure the fuel level gauge. The same buttons access all Digital Message Center functions once the system is configured.
Requires permanent modification to the interior of the stock instrument cluster
Bezel not included — system uses OEM or reproduction style bezel
Install guide coming soon!
This is a made-to-order item manufactured by Dakota Digital. Please allow 60–90 days for shipment. Plan your build timeline accordingly.
